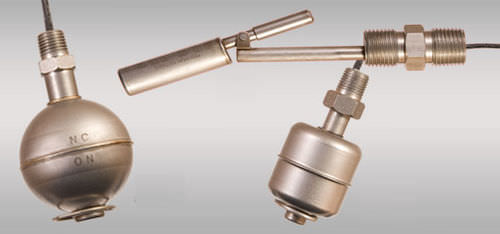

Float level switch Switch-Tek™ LH35-S201

for waterfor oilfor tank

Offered in both vertical and horizontal configurations, the general purpose high-temp float level switches provide reliable liquid level detection of relatively clean water, diluted chemicals and light weight oils with a 30VA or 100VA reed switch output. Media examples include hot deionized water and cooking oil. The stainless steel liquid level sensors are mounted vertically inside the tank or horizontally through the tank wall as a high level alarm or low level alarm. FEATURES 316 SS level sensor for high temp and pressure applications Dry contact reed selectable NO or NC via float orientation Offered in both vertical and horizontal configurations Orientation: LV3X: ±20° vertical, LH35: ±20° horizontal Accuracy: ± 3mm in water Repeatability: ± 1mm in water Specific gravity: LV3X: 0.7 minimum, LH35: 0.6 minimum Contact type: (1) SPST reed Contact rating: LX35: 30 VA, LV36: 100 VA Contact output: Selectable NO / NC Sensor rating: NEMA 6 (IP68) Sensor material: 316 SS Wire jack. mat.: Polymeric Wire type: 2-conductor Wire length: 2’ (61cm) Process mount: LV35: 1/8” NPT, LV36: 1/4” NPT, LH35: 1/2” NPT Classification: General purpose Compliance: CE
