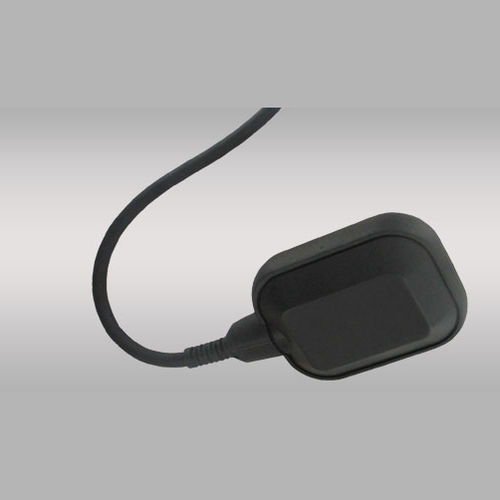

Level switch float Switch-Tek™ LV41 series

level switch float
level switch float
Add to favorites
Compare this product


Characteristics

Options
for level switches

Description

The general purpose sump float level switch provides reliable liquid level detection and is perfect for simple liquid level control for filling or draining reservoirs and tanks. The float switch is universally used for pump automation with reliability, cost effectiveness and ease of installation. FEATURES Float switch intended for automatic start / stop of electrical components Submersible polypropylene body and PVC cable for corrosive liquids Dry contact closure selectable NO or NC state via wiring selection Compatible with counter weight and cable hanger installations Orientation: Vertical Service: Compatible liquids Contact type: SPDT (NO/NC) Contact rating: 10 (8) A @ 250 VAC Sensor rating: NEMA 6 (IP68) Sensor material: Polypropylene Cable jack. mat.: PVC Weight housing: 2.4 lb (1.1 kg) Weight cable: 0.77 lb (21.27g) per foot Classification: General purpose Compliance: CE

Catalogs

No catalogs are available for this product.

See all of Flowline‘s catalogs
