temperature data logger / for monitoring / high-accuracy / intelligent
DATAPAQ® Oven Tracker® XL2 Fluke Process Instruments

{{requestButtons}}

Characteristics

  • Measured quantity:

    temperature

  • Applications:

    for monitoring

  • Other characteristics:

    high-accuracy, intelligent

Description

The DATAPAQ temperature profiling system comprises high-accuracy industrial-strength data loggers, analysis software, thermal barriers and thermocouples.
It enables measurement via up to 16 probes and hardwired real-time data analysis from batch ovens.
Intelligent multiple run capability allows complete consecutive profiling runs without downloading individually. This eliminates the need to return to the QA office between profiling runs, saving time and effort.
The XL2 system continues the DATAPAQ Oven Tracker tradition with its unique two-part data logger design: the SmartPaq module enables you to preprogram the MemoryPaq with process pass/fail criteria, based on either DATAPAQ Value, Time at Temperature, or Maximum Temperature.

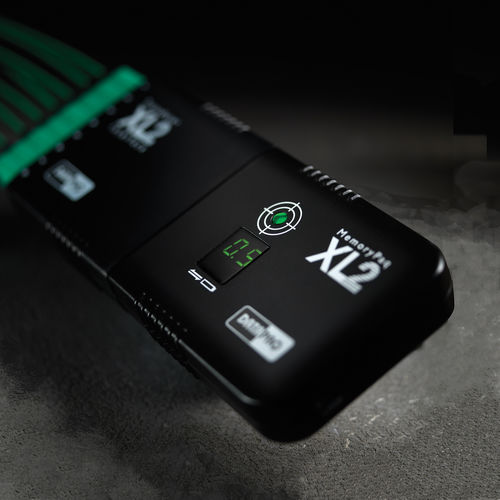

The intelligent XL2 data logger will indicate, if your process is out of control immediately upon exit from the oven. Remove it from the protective thermal barrier at the oven exit and check the indicator on the MemoryPaq module. A green LED means a successful run, so you can continue with confidence. Red indicates a problem. Stop production until the profile data has been analyzed. Corrective action can then be taken to rectify any process problems.
The system includes the fully customizable and easy-to-use Insight analysis software.
The product program comprises a wide range of thermal barriers (silicone-free) & thermocouples to suit your process needs.
