Drum pump / for chemicals / for lubricants / semi-submersible


  • Media:

    for chemicals, for lubricants

  • Priming:


  • Type:

    worm gear

  • Other characteristics:

    follower plate, vertical-mount, ATEX, transfer, drum, explosion-proof

  • Flow:

    50 l/min (13.21 us gal/min)

  • Pressure:

    8 bar (116.03 psi)

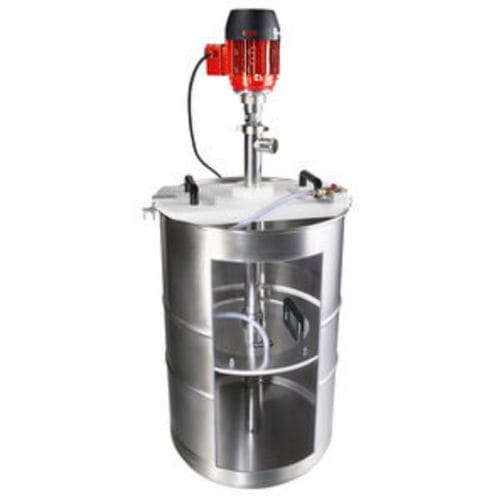

The drum emptying system VISCOFLUX lite is used to transfer higher-viscosity media out of ISO drums with lid. In the Ex version it is suitable for the use in hazardous areas of zone 1 and for transferring a wide variety of flammable media (zone 0/1). The system transports the media gently and continuously. Like the VISCOFLUX and the VISCOFLUX mobile, the VISCOFLUX lite leaves just less than 1 % of the media in the drum.Benefits:- Resource-saving – up to less than 1 % residue- Efficient use of the medium and low expenditure for disposal- Continuous and gentle transport, no structural change of the medium- Fast cleaning as system can be quickly dismantled- High flexibility due to low installation height - also suitable for working rooms with relatively low ceilings- Simple extension due to comprehensive range of accessories (flow meters, hoses, fittings etc.)- Quick to install with few components- Version available for the use in hazardous areas zone 0/1Model article number: VISCOFLUX lite
