Drum pump
for solventsoilfuel

drum pump
drum pump
drum pump
Add to favorites
Compare this product


Characteristics

Fluid
for solvents, oil, fuel
Operation
electric
Priming
semi-submersible
Technology
centrifugal
Mobility
stationary, mobile
Domain
industrial, for the chemical industry, agriculture
Applications
transfer, drum, IBC, for containers
Material
stainless steel
Fluid specification
for flammable fluids
Protection level
explosion-proof, immersion
Other characteristics
mechanical, with mechanical seals, portable, integrated
Flow

35 l/min
(9.24602 us gal/min)

Head

8 m
(26'02" )

Description

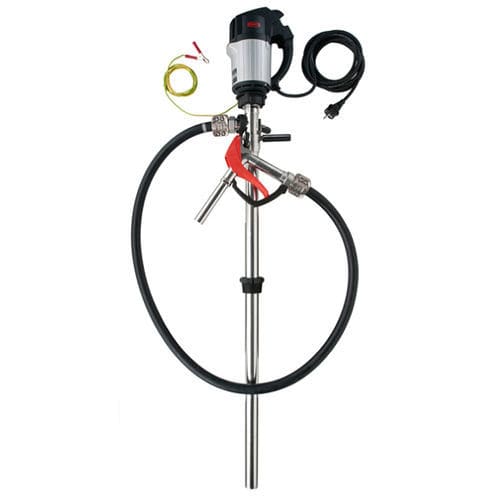

Pre-assembled pump kit for 99,98 % drum emptying. Due to integrated backflow stop less than 0.05 l residual amount in 200 l drum possible. For pumping thin media out of 200 l drums (immersion length 1000 mm) or IBCs (mmersion length 1200 mm). Comprising drum pump F 425 with mechanical seal, outer tube in stainless steel, commutator motor F 460, hose, hand nozzle and compression gland. Can also be used in hazardous areas. Technical data: ► Viscosity: min. 1 mPas - max. 600 mPas ► Outer tube diameter: max. 41 mm ► Immersion length: 1000, 1200 ► Materials outer tube: Stainless steel ► Media / Fluids: Petroleum products, Highly flammable media, Solvents, Fuels ► Seal: with mechanical seal ► Container: 200 l drums, 1000 l IBC Product attributes ► Pump with mechanical seal ► Switch lever to close the backflow valve / foot valve ► Pulsation-free transfer ► Transfer against closed valve (e.g. hand nozzle) possible ► Radial shaft sealing ring prevents intrusion of vapours and liquids into the coupling area Benefits ► Less than 0.05 l residual amount left in 200 l drum ► Universally and flexibly applicable ► Reduction of cleaning and waste disposal costs ► Optimal use of fluids ► No loss of medium when taking the pump from drum to drum ► Stainless steel version can be used in hazardous area
