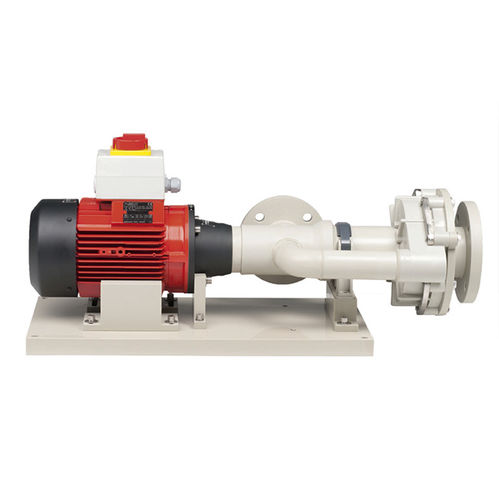

water pump / electric / submersible / centrifugal
F 640 TR FLUX-GERÄTE GMBH

{{requestButtons}}

Characteristics

  • Media:

    water

  • Operation:

    electric

  • Priming:

    submersible

  • Type:

    centrifugal

  • Domain:

    industrial

  • Other characteristics:

    dry, seal, conveying, container

  • Flow:

    733 l/min (193.6381 us gal/min)

  • Power:

    Max.: 4 kW (5.44 hp)

    Min.: 0.75 kW (1.02 hp)

Description

For pumping and conveying of large quantities of heavy flammable liquids out of containers, tanks, open containers etc. The pump is used either horizontally mounted onto a base plate or fixed vertically.

Technical data:
Flow rate: max. 733 l/min1
Delivery head: max. 33 mwc1
Viscosity: min. 1 mPas - max. 2000 mPas1
Diameter pump housing: max. 230 mm2
Diameter mounting flanges: max. 185 mm2
Materials outer tube: Polypropylene
Media / Fluids: Acids, Alkalis, , Fuels
Seal: mechanical seal
Container: Tanks > 1000 liters
Product attributes
With console for dry installation
Consisting of an inner and outer tube as well as a drive shaft mounted in the inner tube
Shaft seal with mechanical seal in ceramic oxide, O-rings made of FKM
Available in two sizes: 30 and 230 TR
With open concical impeller at type 30 TR or with closed centrifugal impeller at type 230 TR
Centrifugal impeller ø 100-160 for size 230 TR
Depending on the model, available with threaded or flanged connections at suction and discharge side
