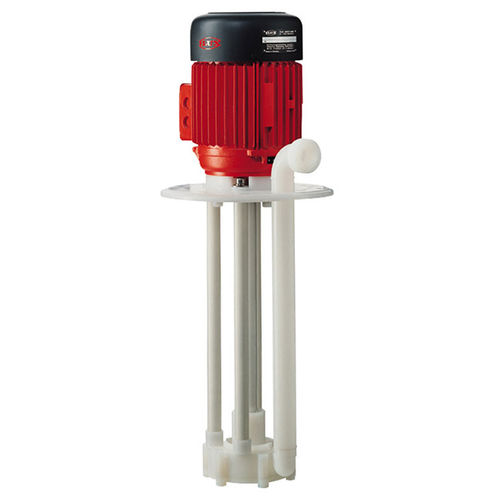

water pump / electric / submersible / impeller
F 716 FLUX-GERÄTE GMBH

{{requestButtons}}

Characteristics

  • Media:

    water

  • Operation:

    electric

  • Priming:

    submersible

  • Type:

    impeller

  • Domain:

    chemical

  • Other characteristics:

    mounting flange, dry, process, conveying, treatment, container, stainless steel, polypropylene, steel

  • Flow:

    750 l/min (198.129 us gal/min)

  • Power:

    Max.: 5.5 kW (7.48 hp)

    Min.: 0.37 kW (0.5 hp)

Description

Suitable for conveying and circulating neutral or chemically aggressive fluids throughout the chemical industry and process engineering, electroplating, steel and stainless steel pickling lines, flue gas decontamination, exhaust air purification, water and waste water treatment
Flow rate: max. 750 l/min1
Delivery head: max. 35 mwc1
Viscosity: min. 1 mPas - max. 150 mPas1
Diameter pump housing: max. 174 mm2
Diameter mounting flanges: max. 340 mm2
Materials outer tube: Polypropylene, Polyvinylidene fluoride
Media / Fluids: Acids, Alkalis, Fuels, Aggressive media
Seal: Sealless in the liquid area
Container: Tanks > 1000 liters
Suspended free-flying shaft without any bearings or seals in contact with the liquid. The motor shaft is equal to the pump shaft
Smooth running of the pump due to robust support tube solidly connected to the mounting flange
Very long service life, even in case of continuous use, suitable for dry running
A range of carefully chosen impeller diameters
With mounting flange for stationary use
Available in four sizes: 115, 135, 185 and 230 for different power ranges
Also available in version with support tube or alternatively with support bar
