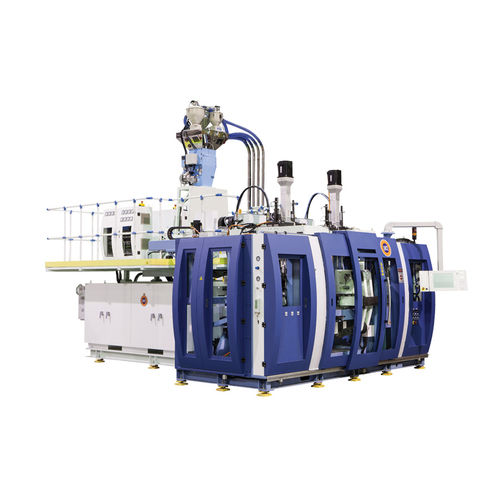

Extrusion blow molding machine FK/EHB65GT04QDfor bottleselectrichydraulic
Add to favorites
Compare this product
Characteristics
- Type
- extrusion
- Finished product
- for bottles
- Other characteristics
- electric, hydraulic
- Hollow part volume
Max.: 500 ml
(16.9 US fl oz)Min.: 200 ml
(6.8 US fl oz)- Clamping force
100 kN, 140 kN
Description
Full Electric Blow Moulding Machine
Quad-head, Double-station
For 200ml-500ml shampoo bottle
Resin
HDPE 5502 grade
Products
500～700ml
NET 38g、Gross 52g
production
2400pcs/hr
Driving motor
CMG 37kW gear reducer motor ＋AB vector inverter control (75HP)
Extruder
φ65mm，L/D=30，barrier flight design with MADDOCK mixing zone
Output
150kg/hr(max.)
Head design
HDPE Four Head，Torpedo design with double spider support leg
Die lip size
φ62mm (max.)
Oil hydraulic motor
multi-connecting rod with self-lock
Clamping plate ( H x W )300x600mm(HxW)
Clamping forceDesign 140kN(14tons)，Operate 100kN(10tons
Clamping stroke280～425mm，fixed
Mould thickness280mm，fixed
Carriage shuttle stroke630mm(max.650mm)
Tonnage pressure
PostcoolingNA
Deflash
