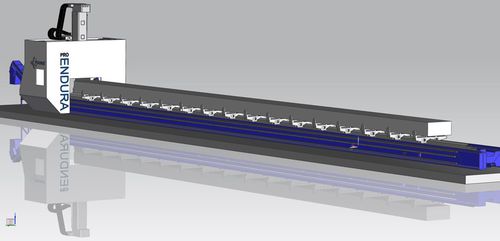

5-axis CNC milling machine ENDURA® PRO LINEAR

verticaltraveling-columnfor aluminum

The ENDURA® PRO LINEAR is a 5-axis gantry – Long bed milling machine, especially designed for high-performance cutting of aluminum and composites profile structure elements. Its monoblock machine bed construction ensures a uniform load distribution. Long traverse paths in X, Y and Z and the application of a highly rigid fork milling head, enable an efficient 5-axes processing of large volume, spatially curved and twisted workpieces, e.g. stringer and other structural components from the aviation industry. The highly rigid construction of the structural and feed drives components results in highest dynamics as well as excellent accuracy of positioning and repeatability in the entire machining area. The milling process of this 5-axis long bed profile milling machine is absolutely stable. Consequently, highest cutting rates up to 11.0 l/min are achieved with minimal wear of the milling cutting edge. FEATURES, TECHNOLOGY AND EQUIPMENT: Highly dynamic GANTRY portal milling machine: Portal moving in X-direction. Design of the machine: Machine bed (X-axis) made of a solid monoblock casting, cross slide, portal (Y-axis) and side walls as welded steel construction, walking beam (Z-axis) made of cast iron. No foundation necessary: Due to the self-supporting machine bed, a standard industrial floor (reinforced with steel), approx. 400 mm thick, is sufficient for the assembly of the machine. A special foundation is not necessary. The machine is set up and aligned by means of fixations which are bolted down to the floor.
