solvent distiller
DIstatic series FORMECO S.R.L.

Add to MyDirectIndustry favorites

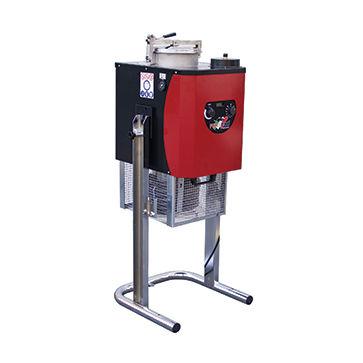

solvent distiller solvent distiller - DIstatic series


  • Applications:



The units of the DIstatic serie, with capacity of 7 - 12 - 15 - 30 - 60 - 120 - 160 - 230 litres are distillers which allow the recycling and the re-use of degreasing and washing solvents. Through a simple distillation process, they separate the contaminants (resins, polymers, pigments, paints, oils, etc.) from the original solvent.
The boiling of the solvent is accomplished by a peripheral heating jacket filled with diathermic oil, heated by an electrical element. The vapours are then convoyed to a condenser cooled by air or water. The condensed solvent is collected in a tank, for its reuse. The contaminants remain as a residue inside a disposable bag named "Rec-Bag" ; in case of liquid residue, by tilting the unit itself. The distilled solvent characteristics are not altered by the distillation process, which can be carried on repeatedly.The DIstatic serie can be connected to a vacuum unit, suitable for high boiling solvents or for those flammable ones which have a close boiling point and flash point. The vacuum module can be equipped with an air operated vacuum pump or an electrical vacuum according to the need.
