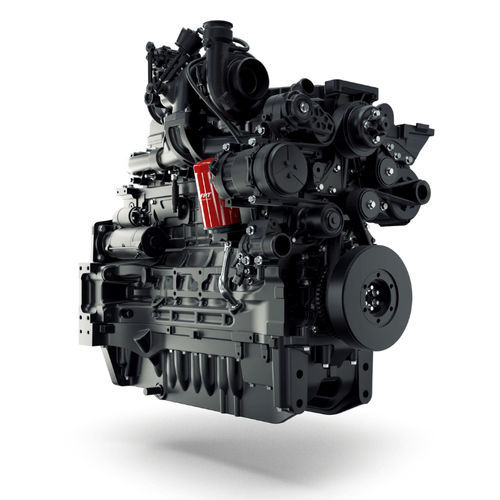

Diesel engine N67
6-cylinderturbochargedin-line

diesel engine
diesel engine
diesel engine
diesel engine
diesel engine
diesel engine
diesel engine
diesel engine
Add to favorites
Compare this product


Characteristics

Type
diesel
Number of cylinders
6-cylinder
Technology
turbocharged, common rail, in-line
Product applications
for the construction industry, power generation, agriculture, marine
Emissions level
Stage III, Tier 3
Other characteristics
4-stroke, compact, liquid-cooled
Power

Min.: 129 kW
(175.391 hp)

Max.: 212 kW
(288.24 hp)

Torque

Min.: 770 Nm
(567.9229 ft.lb)

Max.: 1,160 Nm
(855.5721 ft.lb)

Rotational speed

1,250 rpm, 1,500 rpm, 2,200 rpm
(7,853.98 rad.min-1, 9,424.78 rad.min-1, 13,823.01 rad.min-1)

Displacement

6.7 l
(1.77 gal)

Weight

530 kg
(1,168.45 lb)

Length

1,062 mm
(41.8 in)

Width

687 mm
(27 in)

Height

1,049 mm
(41.3 in)

Description

Agricultural New engine hardware for improved performance Low operating costs with up to 1200 hours oil change interval No-EGR and maintenance free solution for maximum reliability and uptime Description Designed for the most demanding missions of mid-range agriculture machinery, NEF series is the main example of FPT Industrial’s technological excellence. Since 2001 more than 1.7 million engines have been produced for a large number of applications: agriculture, construction equipment, on-road, marine and power generation. With best performances in this category in terms of both power and torque, fuel efficiency and reliability, NEF series stands out for its flexibility, featuring 4 (N45) and 6 (N67) cylinders configurations, with either structural or non-structural design and a wide range of options to customize the solution according to the customers’ needs. Thanks to FPT’s pioneering EGR free combustion and exclusive, patented HI-eSCR2 after-treatment technology, NEF series represents the productivity benchmark in mid-range applications, with further enhancements in performance and efficiency with newly designed Stage V engines.

VIDEO
