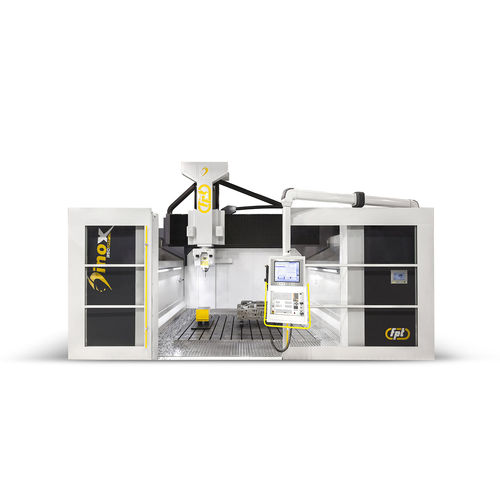

Mobile gantry CNC milling machine DINOX 350 IAT
5-axisverticalfor heavy-duty machining

mobile gantry CNC milling machine
mobile gantry CNC milling machine
mobile gantry CNC milling machine
mobile gantry CNC milling machine
mobile gantry CNC milling machine
mobile gantry CNC milling machine
mobile gantry CNC milling machine
mobile gantry CNC milling machine
mobile gantry CNC milling machine
mobile gantry CNC milling machine
mobile gantry CNC milling machine
mobile gantry CNC milling machine
Add to favorites
Compare this product


Characteristics

Number of axes
5-axis
Spindle orientation
vertical
Structure
mobile gantry
Applications
cutting, for the mold industry, for the automobile industry, for the aerospace industry, for heavy-duty machining
Other characteristics
high-speed, precision, compact
X travel

Min.: 2,500 mm
(98 in)

Max.: 100,000 mm
(3,937 in)

Y travel

3,500 mm
(138 in)

Z travel

1,300 mm, 1,500 mm, 1,800 mm
(51 in, 59 in, 71 in)

Rotational speed

Min.: 0 rpm
(0 rad.min-1)

Max.: 50,000 rpm
(314,159 rad.min-1)

Description

DINOX 350 IAT is a moving bridge Gantry-style machine suitable for heavy duty machining as well as high-speed cutting. The optimization of the structures, through use of the most advanced FEM analysis, and the use of drive systems of the most recent generation as well as linear motors, combine the need for high productivity with flexibility and accuracy, setting a new standard in the machine tool field. Compact layout , optimized configuration; Floor level foundation; Double guideways on longitudinal and cross axes; 5-Axis Tulce Head: Universal 5-axis direct drive milling head “TULCE”,with high speed and high positioning accuracy. Undercutting up to 10 degrees; Stiffness and Expansion Management, automatic geometry re-calibration system for the milling heads; Machining Precision, Special FPT device with continuous check of machine geometry as to the workpiece and relevant zero-setting; Accessories: Automatic geometry re-calibration system for the milling heads.
