3-axis CNC milling machine / horizontal / traveling-column / high-speed
Number of axes:
high-speed, high-precision, for the aeronautical industry, for the mold industry
Min.: 4000 mm
Max.: 20000 mm
Min.: 1250 mm
Max.: 1500 mm
Min.: 2500 mm
Max.: 3000 mm
Min.: 5000 rpm (31415.93 rad.min-1)
Max.: 18000 rpm (113097.34 rad.min-1)
49 kW (65.71 hp)

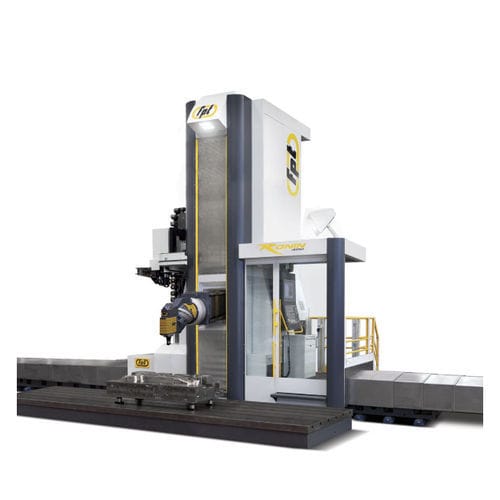

RONIN EVO is a horizontal travelling column milling machine able to accomplish a wide range of machining requirements for die & mould making, aerospace applications and general machining.
Thanks to its innovative shape design and dimensioning obtained by means of structural analysis, RONIN EVO grants exceptional values of static and dynamic rigidity. These factors are decisive in order to achieve high speed machining and acceleration, together with high accuracy in finishing and contouring.
The RONIN EVO structure is entirely made of special cast iron and distinguishes itself from other products by the symmetry of the guiding systems as to the moving axes and the thermosymmetry on the cross - vertical plane.
The monolithic column with lowered trim and the rectangular ram with variable section together with the 4 guideway system, both for the vertical axis and the ram, ensure the highest optimisation of the stiffness.
The wide range of product configurations combined with the numerous milling accessories and rotary tables made by FPT, allow us to satisfy the specific market demands and the most particular machining requirements.
2 is better than 3!…. is not meant to be a slogan but the representation of technical solutions developped for this machine.
