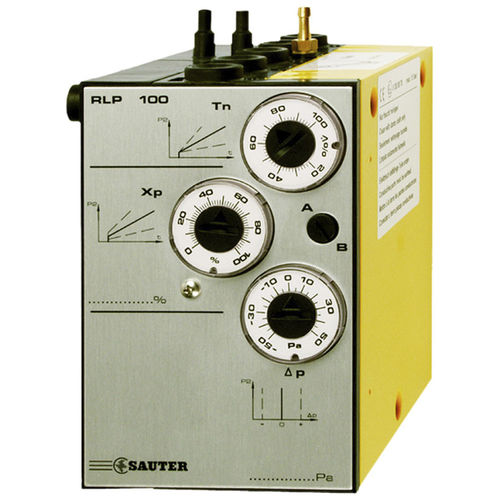

Adjustable pressure controller RLP100F9 series

differentiallow-pressure

How energy efficiency is improved Allows precise measurement and control of pressure differences in clean rooms or laboratories without creating additional pressure equalisation openings leading to unnecessary energy losses Features Suitable for explosion hazard zone 1 II 2 G T6 Room-pressure control in tightly-sealed rooms, e.g. clean rooms or laboratories (up to BSL-4) Fast and accurate control system in conjunction with the RLP 100 pneumatic air volume controllers Accurate static sensor; can also be used in areas with contaminated air Conformity tested as per EN 13463-1 and EN 1127-1 (ex zone 1 II 2 G T6) Front plate is printed with diagrams for easy identification of the controller's functions Compressed-air connections with Rp⅛" female thread Special measuring connection for detecting the room pressure Low-pressure connections with dual-diameter connector for soft plastic tubing (internal Ø 4 and 6 mm) 1 input Remote setpoint adjustment 2 outputs Actual value for room pressure Command signal for air-volume controller (air volume shift) Setpoint adjuster for room pressure (minimal limitation for room pressure for setpoint remote adjustment) and adjuster for Tn and Xp
