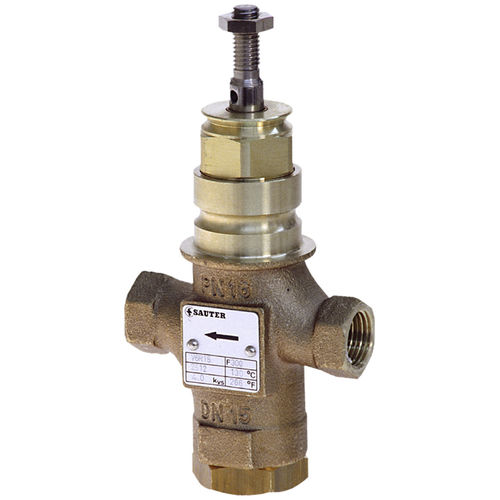

Globe valve V6R seriespneumaticcontrolregulating
Add to favorites
Compare this product
Characteristics
- Type
- globe
- Operation
- pneumatic
- Function
- control, regulating
- Body
- female, stainless steel, brass, EPDM, silicone
- Number of channels
- 2-way
- Other characteristics
- ISO, DIN, grease
- DN
15 mm, 25 mm, 40 mm, 50 mm
(0.591 in, 0.984 in, 1.575 in, 1.969 in)- Pressure
16 bar
(232.1 psi)- Temperature
Min.: -15 °C
(5 °F)Max.: 130 °C
(266 °F)- Flow rate
Min.: 0 m³/h
(0 ft³/h)Max.: 35 m³/h
(1,236.01 ft³/h)
Description
How energy efficiency is improved
Efficiency means precise and reliable control
Features
Regulating valve free of silicone grease with female thread DIN EN ISO 228-1 G for the control of cold/hot water in closed circuits
In combination with AVP 142 and AV 43 valve actuators
Equal-percentage (F3**) or linear (F2**) characteristic
Control passage A–AB closed when the spindle is moved out
Closing procedure against the pressure
Valve body and seat made of gunmetal
Stainless-steel spindle
Stuffing box made of brass with wiper ring and double O-ring seal made of EPDM
