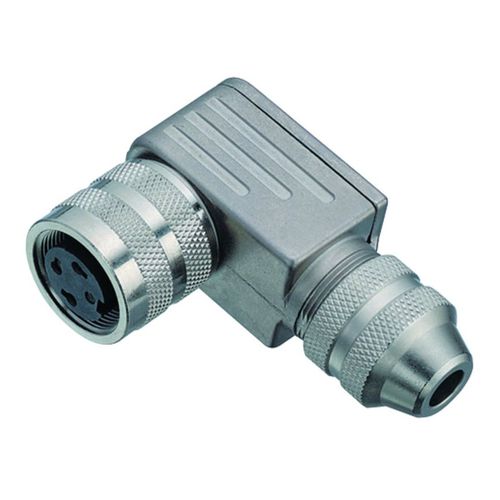

RF connector 423 seriesDINelbowcircular
Add to favorites
Compare this product
Characteristics
- Type
- RF
- Format
- DIN
- Shape
- elbow, circular
- Connection type
- female
- Size
- M16
- Material
- PBT
- Protection class
- IP67
- Other characteristics
- miniature, shielded
- Primary current
1 A, 3 A, 5 A, 6 A, 7 A
- Voltage
60 V, 125 V, 250 V
Description
M16 IP67 Female angled connector, Contacts: 2, 4.0-6.0 mm, shieldable, solder, IP67, UL
Connector design - Female angled connector
Version - Connector socket angled
Connector locking system - screw
Termination - solder
Degree of protection - IP67
Cross-sectional area - max. 0.75 mm² / AWG 18
Cable outlet - 4.0-6.0 mm
Twistability - 90° (4 coding options)
Temperature range from/to - -30 °C / 95 °C
Mechanical operation - > 500 Mating cycles
Weight (g) - 72.16
Customs tariff number - 85369010
