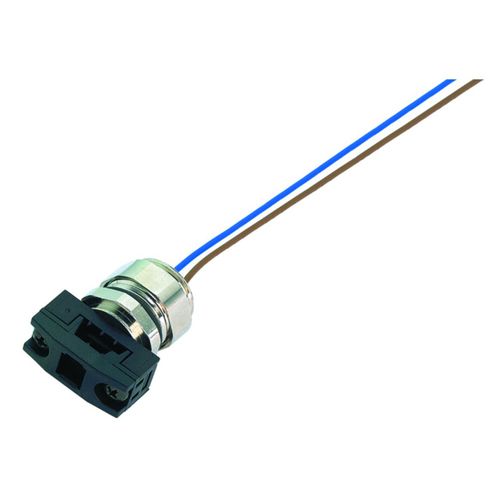

electrical power supply connector / flange / IP67 / for sensors
775 series Franz Binder GmbH + Co. Elektrische Bauelemente KG

{{requestButtons}}

Characteristics

  • Type:

    electrical power supply

  • Connection type:

    flange

  • Other characteristics:

    IP67

  • Product applications:

    for sensors, for actuators, for flat cables

  • Field:

    automation

  • Current:

    2 A

  • Voltage:

    30 V

Description

Connector locking systemribbon cable terminal
Terminationsingle wires
Wire gauge (mm)AS-Interface 1,5 mm²/0,25mm²
Wire gauge (AWG)(16), (24)
Degree of protectionIP67
Upper limit temperature70 °C
Lower limit temperature-25 °C
Rated current (40 °C)2 A (per contact)
Rated voltage30 V
Rated impulse voltage500 V
Pollution degree3
Volume resistivity≤ 8 mΩ
Insulation resistance≥ 10¹⁰Ω
Contact materialCuZn (brass)
Contact platingAu (gold)
Contact body materialPA
Customs tariff number85369010
Weight (g)23
