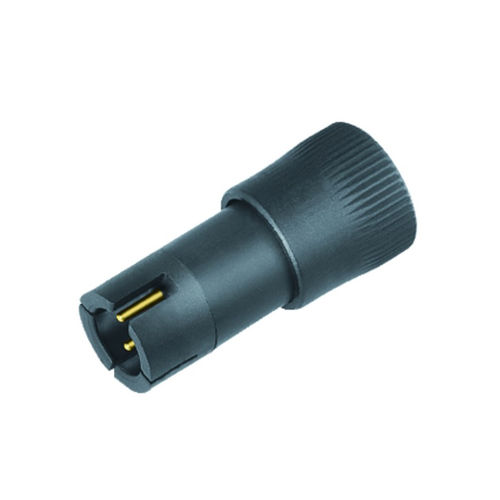

Electrical power supply connector 719 series
DINcircularmale

electrical power supply connector
electrical power supply connector
Add to favorites
Compare this product


Characteristics

Type
electrical power supply
Format
DIN
Shape
circular
Connection type
male, snap-on
Material
polyamide
Protection class
IP40
Other characteristics
subminiature, strain relief
Primary current

3 A

Voltage

60 V

Description

Connector locking systemsnap Terminationsolder Wire gauge (mm)0,25 mm² Wire gauge (AWG)24 Cable outlet2,5 - 4,0 mm Degree of protectionIP40 Mechanical operation> 100 Mating cycles Upper limit temperature70 °C Lower limit temperature-25 °C Rated impulse voltage800 V Pollution degree1 Overvoltage categoryII Insulating material groupIII Volume resistivity≤ 3 mΩ Insulation resistance≥ 10¹⁰Ω Contact materialCuZn (brass) Contact platingAu (gold) Contact body materialPA Customs tariff number85369010 Weight (g)1.22
