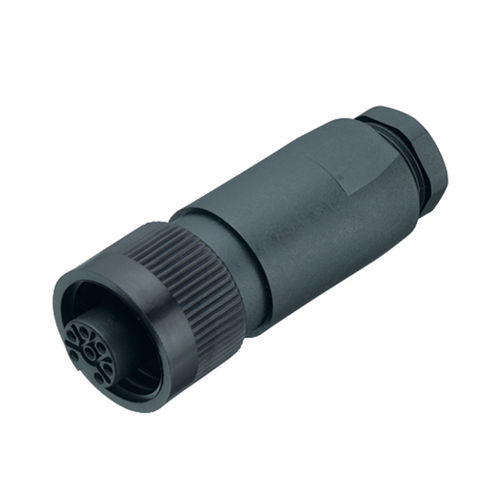

Electrical power supply connector 99 0210 110 04DINstraightcircular
Add to favorites
Compare this product
Characteristics
- Type
- electrical power supply
- Format
- DIN
- Shape
- straight, circular
- Connection type
- female, screw-locked
- Electrical characteristics
- power
- Material
- PBT, brass
- Product applications
- cable
- Protection class
- IP67
- Primary current
16 A
- Voltage
400 V
- Operating temperature
Min.: -40 °C
(-40 °F)Max.: 100 °C
(212 °F)
Description
RD24 Female cable connector, Contacts: 3+PE, 8.0-10.0 mm, unshielded, screw clamp, IP67, PG 11
Connector design - Female cable connector
Version - Connector socket straight
Connector locking system - screw
Termination - screw clamp
Degree of protection - IP67
Cross-sectional area - max. 2.50 mm² / AWG 14
Cable outlet - 8.0-10.0 mm
Temperature range from/to - -40 °C / 100 °C
Mechanical operation - > 500 Mating cycles
Weight (g) - 43.53
Customs tariff number - 85369010
