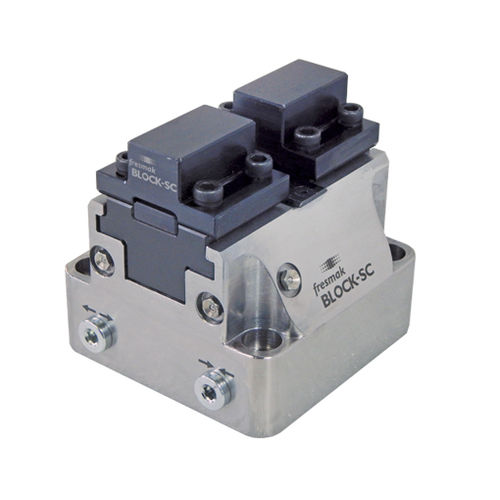

machine tool clamping force block / hydraulic
BLOCK-SC Fresmak

{{requestButtons}}

Characteristics

  • Applications:

    for machine tools

  • Operation:

    hydraulic

  • Max. clamping force:

    16 kN, 40 kN

  • Stroke:

    6 mm, 8 mm

Description

Hydraulic static blocks reach a pressure between 16 KN and 40 KN with an infeed power of 120 barStroke range of 6 and 8mm- Double effect actinoning- Repeatability accuracy of 0.020 mm- Long guides- All basic components are hardened- Basic surfaces are ground- Entirely compact and fully protected against chips- Total lubrication system. Greasing channels within the base jaw and base body- The oil supply for machining and lubrication can be performed from the sides or the base of the body- Hydraulic supply up to 120 barFUNCTIONINGHydraulically actioned wedge clamping system: the multiplication of the hydraulic force is performed by actioning the wedges. These wedges are ground in order to give rigidity and precision to the set.
