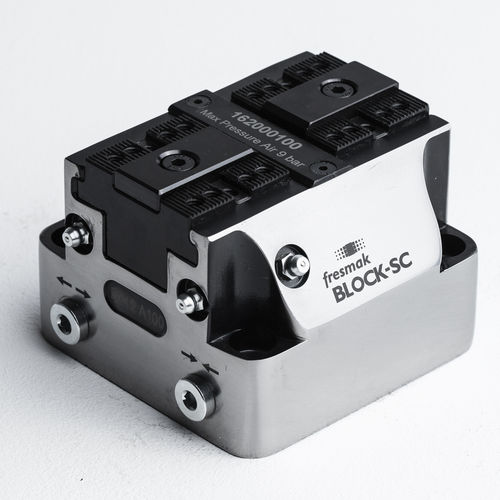

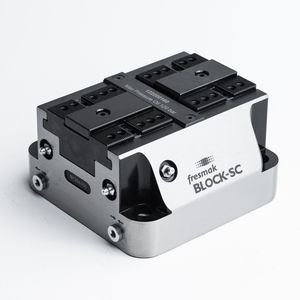

Machine tool vise BLOCK-SC 100

pneumaticself-centering

Pneumatic static blocks reach a pressure between 8 KN and 20 KN with an infeed power of 6 bar Stroke range of 6 and 8mm – Double effect actioning – Repeatability accuracy of 0.020 mm – Long guides – All basic components are hardened – Basic surfaces are ground – Entirely compact and fully protected against chips – Total lubrication system. Greasing channels within the base jaw and base body – The air supply for machining and lubrication can be performed from the sides or the base of the body – Pneumatic supply up to 9 bar FUNCTIONING Pneumatically actioned wedge clamping system: the multiplication of the pneumatic force is performed by actioning the wedges. These wedges are ground in order to give rigidity and precision to the set.
