Regulator PSC

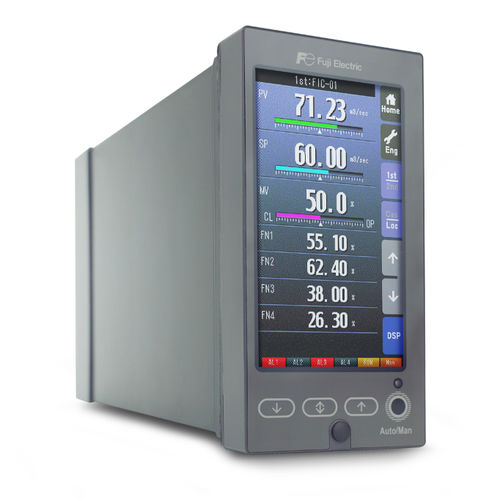

Multi-fonction and programmable PID controller : Highly visible color graphic LCD IP 55 front panel Intuitive touch panel operation Input : 2 universal input DC current (including 2 wire transmitter) Thermocouple Potentiometer RTD (PT100, JPt 100...) 4 DC input (1-5V) 5 discrete/pulse input 1 high speed pulse input (with sensor excitation) Output: 2 DC current (4-20 mA) 2 DC voltage (1-5V) 5 relay or photo MOS contact 1 RUN relay contact Applications CHEMICAL INJECTION CONTROL The SC100 controls two flow loops for water and injected chemical. the chemical flow is controlled in a constant ratio against the water flow.chemical injection control Other signals from pH and conductivity analyzers can be monitored at once. REACTOR TEMPERATOR CONTROL The reactor temperature control loop is connected in cascade to the hot water control loop in the hot water tank.Application reactor temperature control The secondary loop controller controls the valves for hot water and steam.
