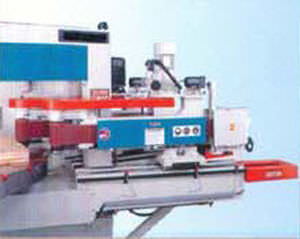

Auto copy for wood shaping machine ACS series

MODEL ACS-80-3PS ACS-80-4PS CUTTING CAPACITY 12" ~ 80" 12" ~ 80" MAX. CUTTING LENGTH TO WIDTH RATIO 71.4" × 35.7" 71.4" × 35.7" TABLE DIAMETER Φ62" Φ62" TABLE SPEED 0.5 ~ 3.0 R.P.M. 0.5 ~ 3.0 R.P.M. SPINDLE SPEED 9000 R.P.M. 9000 R.P.M. SPINDLE DIAMETER Φ30 mm Φ30 mm SPINDLE HEIGHT 5.5" 5.5" MAX. CUTTING DIAMETER RANGE Φ200 mm Φ200 mm FOLLOWER WHEEL DIAMETER Φ100 mm Φ100 mm TABLE DRIVE MOTOR 2HP / DC 2HP / DC CUTTER HEAD DRIVE MOTOR 10HP × 2 10HP × 2 SANDING ATTACHMENT MOTOR 2HP × 1 2HP × 1 , 3HP × 1 NET WEIGHT 3500 kgs 3600 kgs GROSS WEIGHT 4000 kgs 4100 kgs MACHINE SIZE (mm) 3500 × 2175 × 1778 3500 × 2175 × 1778 PACKING DIMENSIONS (mm) 3700 × 2250 × 2220 3700 × 2250 × 2220
