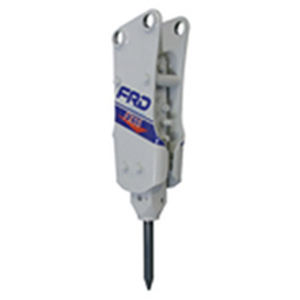

Hydraulic breaker Fx series

for excavatorsverticallow-noise

Suited to your needs. Performance & Quality. This is a high quality and highly reliable hydraulic breaker from the world's top manufacturer that realizes superior durability, crushing power, and work efficiency. FRD has a wide variety of models in our product line, for mini-excavators through giant-excavators. Operating Weight60 kg (Side plate) Height924 mm (Side plate) Rod Diameter36 mm Excavator Weight0.85 - 1.5 t Hose Diameter9 mm Operating Oil Pressure10 - 14 MPa Oil Flow Rate10 - 28 l/min Impact Rate600 - 1,500 min-1 Operating Weight102 kg (ST-Box) Height993 mm (ST-Box) Rod Diameter45 mm Excavator Weight1.35 - 2.5 t Hose Diameter12 mm Operating Oil Pressure10 - 14 MPa Oil Flow Rate18 - 35 l/min Impact Rate600 - 1,500 min-1 Operating Weight140 kg (ST-Box) Height1,048 mm (ST-Box) Rod Diameter52 mm Excavator Weight1.9 - 3.5 t Hose Diameter12 mm Operating Oil Pressure12 - 16 MPa Oil Flow Rate24 - 52 l/min Impact Rate600 - 1,300 min-1
