Soldering gun FE-71

airautomaticwith piston

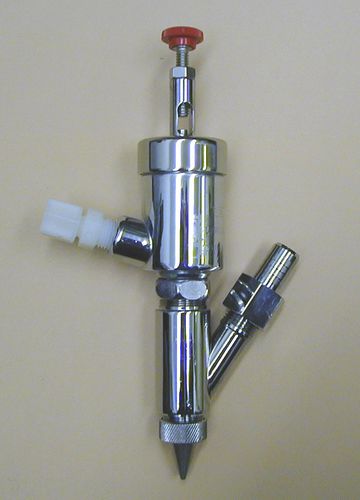

Fig I — Compressed air from control panel is introduced to upper gun body, forcing circular piston and attached piston rod upward against coil spring. Pressurized paste alloy (from reservoir) fills vacant space between piston rod tip and nozzle orifice. Fig. II — As timer de-energizes, compressed air is exhausted, and coil spring returns piston and rod to closed position. Piston rod tip displaces paste alloy through nozzle orifice and seals opening until next cycle. Precise deposit size is obtained by adjusting control panel timer, paste pressure, and length of piston rod stroke.
