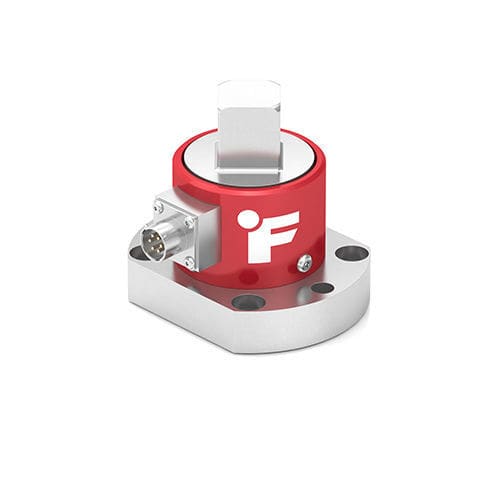

square drive torque sensor / static / with flange / strain gauge
TDF650 series FUTEK Advanced Sensor Technology, Inc.

• Type:

  static

• Configuration:

  square drive, with flange

• Other characteristics:

  strain gauge

• Torque:

  1,400 Nm (1,032.59 ft.lb)

Product Description
FUTEK’s Reaction Torque Sensor - Flange/Square Drive offers a unique solution for auditing and calibrating mechanical torque wrenches, also used in production and automated assembly applications. The TDF650 Reaction Torque Sensor - Flange/Square Drive is available in 17-4 Stainless Steel with a Aluminum cover and 1” square drive.

The standard TDF650 Reaction Torque Sensor - Flange/Square Drive can be modified or customized to meet your requirements. The TDF650 Reaction Torque Sensor - Flange/Square Drive Series is manufactured in USA and uses metal foil strain gauge technology.

Product Highlights:
Designed for Torque auditing
Stainless Steel Construction
Aluminum Cover
1” Square Drive
Strain Gauge Based
For those who are a looking for a complete system solution, FUTEK can provide both signal conditioned displays or our VCal Portable System. FUTEK’s VCal Portable System brings an easy-to-use system verification directly to the customer making it ideal for on-site verification and calibration of your products. FUTEK TDF Series is also available with TEDS / IEEE1451.4 option.
