static torque sensor / square drive / with flange / strain gauge
TDF675 series FUTEK Advanced Sensor Technology, Inc.

{{requestButtons}}

Characteristics

  • Type:

    static

  • Configuration:

    square drive, with flange

  • Other characteristics:

    strain gauge

  • Torque:

    2,712 Nm (2,000.27 ft.lb)

Description

Product Description

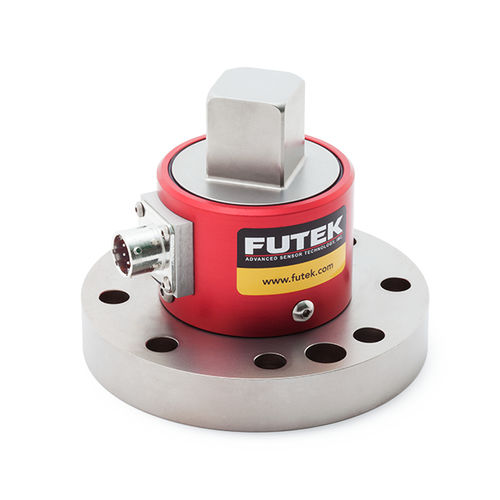

FUTEK’s Reaction Torque Sensor - Flange/Square Drive offers a unique solution for auditing and calibrating mechanical torque wrenches, also used in production and automated assembly applications. The TDF675 Reaction Torque Sensor - Flange/Square Drive is available in 17-4 Stainless Steel with a Aluminum cover and 1” square drive.

The standard TDF675 Reaction Torque Sensor - Flange/Square Drive can be modified or customized to meet your requirements. The TDF675 Reaction Torque Sensor - Flange/Square Drive Series is manufactured in USA and uses metal foil strain gauge technology.

Product Highlights:
Designed for Torque auditing
Stainless Steel Construction
Weight: 80 oz
Aluminum Cover
1” Square Drive
Strain Gauge Based
For those who are a looking for a complete system solution, FUTEK can provide both signal conditioned displays or our VCal Portable System. FUTEK’s VCal Portable System brings an easy-to-use system verification directly to the customer making it ideal for on-site verification and calibration of your products. FUTEK TDF Series is also available with TEDS / IEEE1451.4 option.
