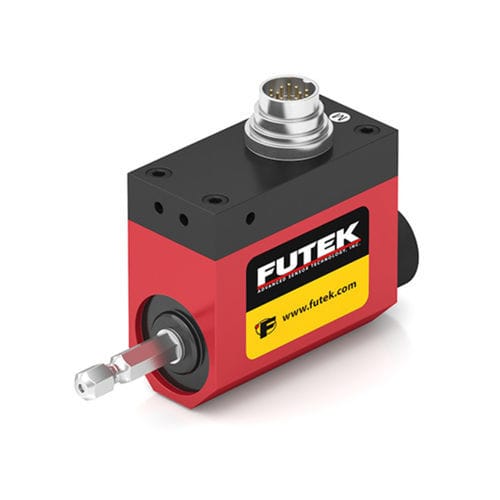

rotary torque sensor / hex drive / non-contact / compact
TRH605 series FUTEK Advanced Sensor Technology, Inc.

{{requestButtons}}

Characteristics

  • Type:

    rotary

  • Configuration:

    hex drive

  • Other characteristics:

    non-contact, compact, strain gauge, with angle encoder

  • Torque:

    Max.: 18 Nm (13.28 ft.lb)

    Min.: 0.5 Nm (0.37 ft.lb)

Description

FUTEK’s TRH605 Non-Contact Hex-Drive Rotary Torque Sensor with Encoder features a hex drive mounting solution with torque measurements ranging from ± 0.5 Nm to 18 Nm (± 4.5 in-lb to 159 in-lb) and a torsional stiffness of 180 Nm/rad to 690 Nm/rad. The TRH605 utilizes metal foil strain gauge technology and features non-contact signal transmission allowing the sensor to operate at up to 7000 RPM.

The TRH605 features a pair of built-in rotary encoders, ideal for measuring shaft speed and position. The TRH605 contains an internal amplifier allowing the torque transducer to generate a ±5 VDC output. Applications for the TRS605 include power tool auditing, engine testing for automotive and aerospace, and industrial testing apparatuses.

Product Highlights:

Utilizes strain gauge technology
Angle speed feedback included
Compact size
Can operate up to 7000 RPM
