Hardening oven 1244

heat treatmentstoragechamber

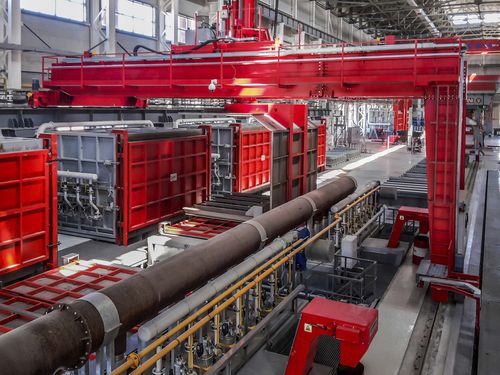

Automatic batch line to perform heat treatment of steel components including tubular billets as well as large pipeline components. The line can perform various processes as: normalizing, austenitizing, annealing, solubilization and tempering. Quenching could be performed in different fluids: water, polymer and oil. Maximum batch weight is 20 T treated at 1.150 °C. The quenching tank has 6 Kaplan agitators and a scale/slag removing system, the total volume is 160 m³. The liquid of the tank could be preheated or cooled. Batch line components – 4 chamber furnaces – 2 quenching tanks with agitators and slag removing system – 6 storage stations – 1 loading/unloading transfer station – 1 automatic loader (20 T capacity) gantry lame type, movement on 4 axis – Custom made supervision system ready for full integration with customer management system
