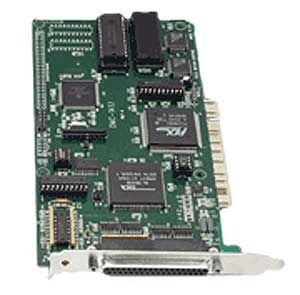

Single-axis motion control card
1 - axis, max. 500 W | CDS-3310

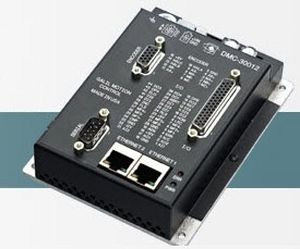

Galil's CDS-3310 is a single-axis controller and drive system for precisely controlling a brush or brushless servo motor. It combines a high-performance, programmable motion controller with a 500W PWM drive in a compact, cost-effective package. The CDS-3310 provides a 10/100 Base-T Ethernet port and individual CDS-3310 units may be connected on a distributed network and programmed as a single controller. The communication burden is minimized because the host PC only has to talk with the master CDS-3310, which in turn communicates with the other CDS-3310 on the network.
The CDS-3310 incorporates a 32-bit microcomputer and provides such advanced features as PID compensation with velocity and acceleration feedforward, program memory with multitasking for simultaneously running up to eight programs, and uncommitted I/O for synchronizing motion with external events. Modes of motion include point-to-point positioning, jogging, contouring, electronic gearing and ECAM. As with all Galil controllers, programming the CDS-3310 is simplified with two-letter, intuitive commands and a full set of software tools such as WSDK for servo tuning and analysis, and the ActiveX Tool Kit for Visual Basic users.
