Angle notching machine / manual / for tubes / with abrasive belt
NOK 150 GARBOLI

Characteristics

  • Type:

    angle

  • Operation:

    manual

  • Applications:

    for tubes

  • Other characteristics:

    with abrasive belt

  • Engine power:

    3 kW (4.02 hp)

  • Weight:

    270 kg (595.25 lb)

Description

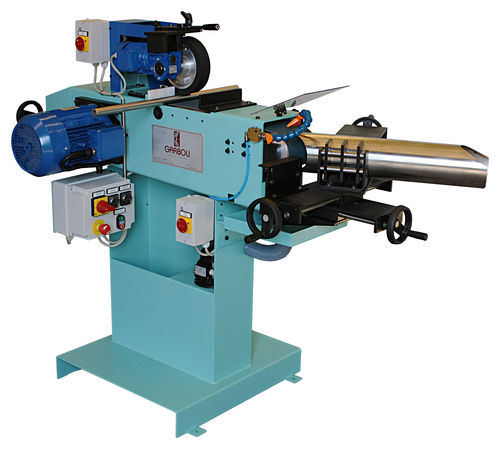

The NOK150 is a notching machine developed by Garboli. It is built suitable for tubes with abrasive belt. The unit is mainly used to execute notches and grooves on tubes, bars, and profiles.

It is supplied with side tilting clamping unit to execute notches with 15°, 30°, 45°, 60°, 90° angles. The framework also has 20 to 150 mm diameter, working slot for horizontal grinding, and a fix rotation speed for the grinding belt.

In addition, the system can be attached with center-less equipment to grind straight pieces with round section, kit for wet processing, and double rotation speed for the abrasive belt to increase its working possibilities.
