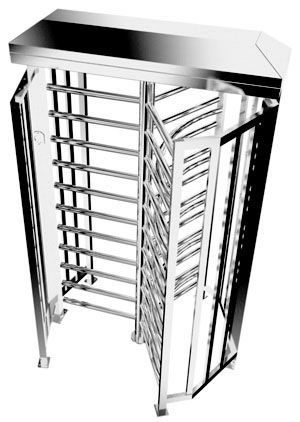

Full-height turnstile BR3-1-3

PURPOSE A high gate intended for traffic control, to be used in guarded areas of a strict access control level. It has a processor system, comb motion support, two-way mechanism, diode pictograms, emergency unlocking. The frame and the rotor are made of stainless steel or powder painted steel. CASING The rotor is made of 1.4301 (EN 10088) ground stainless steel or S235JR powder painted steel (EN10025:1996). The frame is optionally made of: stainless steel / zinc plated steel / powder painted steel. The access to the gate internal mechanism is secured with a keyoperated lock. Fastened to the floor with anchors, e.g. glued ones. WAY OF OPERATION The two-way mechanism enables traffic control in both directions or in a selected direction. The diode pictograms, situated on the gate frame, indicate the gate locked/unlocked status. The red cross indicates the passage closure, the green arrow indicates the passage opening. The electromechanical power motion of the arms facilitates smooth passing (traffic) and supports the automatic locking of the arm system. CONTROL SYSTEM After the processor system receives a signal from an external device (free of potential), it takes over a overall control of the system, i.e. enabling and disabling the arm motion, and sends the feedback signal after the transfer cycle is completed.
