Gas pump TPS serieselectricself-primingcentrifugal
Add to favorites
Compare this product
Characteristics
- Fluid
- for gas
- Operation
- electric
- Priming
- self-priming
- Technology
- centrifugal
- Domain
- sanitary, for hygienic applications
- Applications
- transport
- Flow
Max.: 69 m³/h
(2,436.712 ft³/h)- Head
Max.: 95 m
(311'08" )- Power
Min.: 2.2 kW
(2.99 hp)Max.: 22 kW
(29.91 hp)
Description

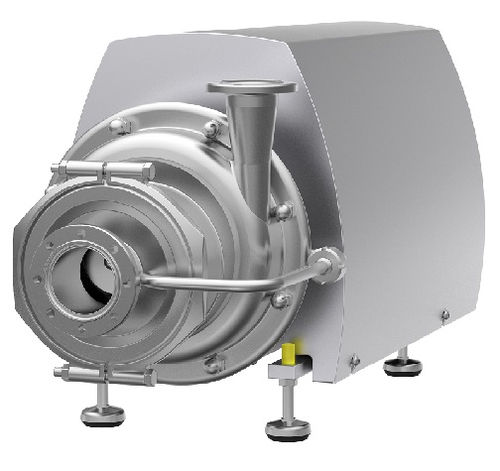

A new generation of hygienic, self-priming centrifugal pumps capable of conveying gases
By combining the existing GEA Tuchenhagen®-VARIFLOW TP series with a screw rotor, a new generation of hygienic self-priming centrifugal pumps has been created.
The new GEA Tuchenhagen®-VARIFLOW TPS series conveys products containing a large amount of gas. It is characterized by a low sound power level, high efficiency and optimal cleaning properties.
This TPS series also permits evacuation of pipes on the suction side just one pump only for CIP return and product conveying. The new TPS series is used for CIP return applications, for emptying tanks as well as for conveying products containing gas.
