Characteristics

  • Media:

    water, slurry

  • Operation:

    electric

  • Type:

    piston

  • Domain:

    agriculture

  • Other characteristics:

    heavy-duty, small, transfer, stainless steel, PVC

  • Power:

    3.7 kW, 5.5 kW (5.03 hp)

Description

A reliable and versatile system designed to homogenize solid dairy manure and liquid into slurry that can be evacuated through small PVC pipe.

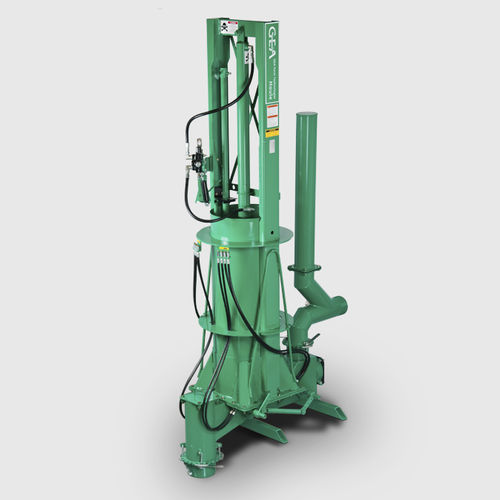

The Electromix System includes a low power pump with hydraulically driven piston and the Electromix agitator. This system evacuates dairy manure that has been fully agitated and homogenized through underground line from tied stall or from free stall barns up to the main storage. The manure may contain bedding such as straw or sawdust of a consistency not exceeding 1½" (38 mm). The Electromix pump can be either wall mounted or floor mounted. Most of the time, the Electromix system requires a liquid return line from the main storage back to the reception pit in order to precondition the manure before transfer. It allows minimizing water addition, thus reducing the volume of storage. Have a look at the many possibilities that the Electromix System offers to definitely ease manure handling.
Available motors: 5 or 7.5 HP (5.5 or 3.7 kW). The 7.5 HP (3.7 kW) motor is available only with the heavy-duty pumping tube option.
Stainless steel pumping tube.
3" (76 mm) hydraulic cylinder. 4" (102 mm) hydraulic cylinder supplied with the heavy-duty pumping tube option.
Low pressure mechanical reversing system for smooth operation.
The pump can be installed to start automatically or manually by means of a control panel.
8" (203 mm) suction pipe of 10 feet (3 m) long maximum.
6" (152 mm) gate valve with insulated handle on liquid return line.
6" (152 mm) air damper.
Electromix Agitator.
