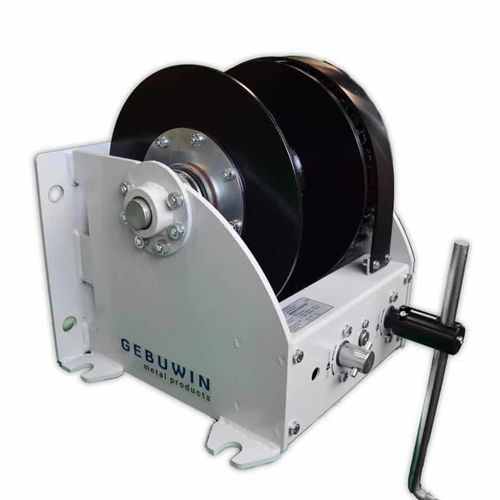

Manual winch WW2000-5000 FSB

wire ropeworm gear2-speed

These Gebuwin worm gear hand winches with a free spool brake are designed for pulling loads. The free spool with an extra option of a slipping drum brake makes a controlled pull out of the cable possible. The combination of the braking system in the wormgear transmission and the robust design results in a very safe pulling winch. Product specifications - Robust construction - Used primarily for pulling loads - The cable drum has a free spool to pull the cable from the drum by hand - The braking mechanism consists of 50% by the friction in the worm gear transmission and 50% by a load pressure brake - Static safety minimum factor 4 - Adjustable crank and recoil free - A second drive shaft is available, which makes it possible to work with two speeds. - All rotating parts run in maintenance free bearings - Cable outlet possible upward, downward and at rear. - The numbers in the product name correspond with the hoisting capacities on the first cable layer. Pulling capacity is approx. 2.5 times the hoisting capacity - Standard paint finish in grey (RAL 7035) and black (RAL 9005) according to DIN 12944, C1M
