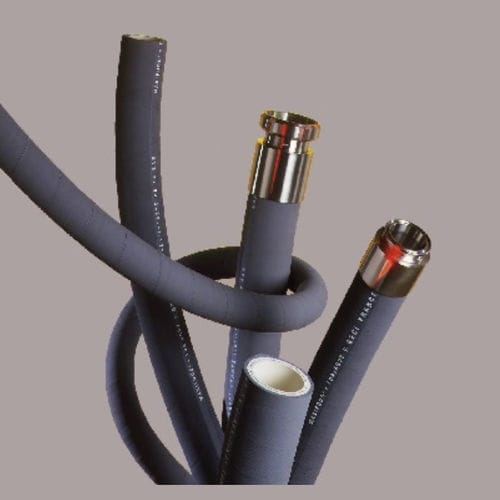

Chemical product hose MAXIFOOD®foodstuffsynthetic rubberEPDM
Add to favorites
Compare this product
Characteristics
- Use
- for chemical products, foodstuff
- Material
- synthetic rubber, EPDM
- Applications
- for vacuum, for the chemical industry, for the food industry, for the pharmaceutical industry, for the cosmetic industry
- Norms
- DIN
- Other characteristics
- abrasion-resistant, smooth, standard, rugged, without metal reinforcement
- Inner diameter
Max.: 76 mm
(2.992 in)Min.: 25 mm
(0.984 in)- Outer diameter
Max.: 101 mm
(3.976 in)Min.: 38 mm
(1.496 in)- Pressure
10 bar
(145.038 psi)- Temperature
Max.: 100 °C
(212 °F)Min.: -35 °C
(-31 °F)- Delivered length
40 m
(131'02" )
Description
White EPDM, synthetic plies reinforcement, high tenacity.
Outer surface grey smooth synthetic rubber.
Product highlights
Very robust hose without wire reinforcement
Excellent rub and abrasion resistance
Recommended for processing most of the food products except oily and fat ones
Can be used for metal detectors
Assembling possibilities
The 316L stainless steel swaged fittings are monoblocs (without welding) in accordance with the NRS® design (Non Retention System). The hose can be also supplied with reusable fittings and ferrules for some diameters (contact us). All kinds of fittings available on request (SMS, DIN, CLAMP, RJT, ISS, FIL, GAS, NPT, JIC, FLANGES, etc).
