Butterfly valve KG7electricshut-offfor water
Add to favorites
Compare this product
Characteristics
- Type
- butterfly
- Operation
- electric
- Function
- shut-off
- Media
- for water
- Body
- flange, lug type, 2-piece, stainless steel, PTFE-lined
- Applications
- for the food industry, for pipelines
- Other characteristics
- ISO, ANSI, DIN, ATEX
- DN
Max.: 300 mm
(11.811 in)Min.: 50 mm
(1.969 in)- Pressure
10 bar, 16 bar
(145 psi, 232.1 psi)- Temperature
Max.: 200 °C
(392 °F)Min.: -30 °C
(-22 °F)
Description

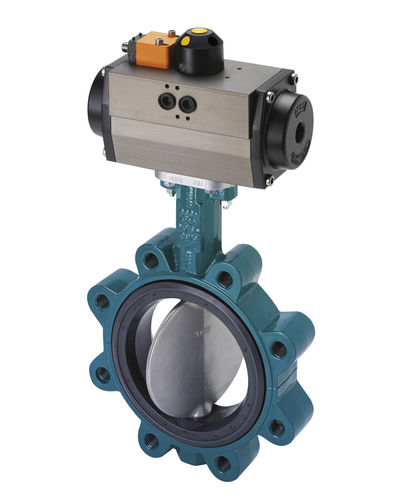

Lug type butterfly valve for installation between flanges EN 1092, DN 50 - DN 150: PN 10/16, DN 200 - DN 300: PN 10, DN 200 - DN 300: PN 16, ASME class 150. Two-piece body with threaded cams for a firm flange connection from both sides. The pipeline can be removed from the flange on one side, vacuum-tight.
Face-to-face dimension DIN EN 558 line 20 API 609 table 1
Mounting flange DIN EN ISO 5211
Test DIN EN 12266 P10 P11 P12 leakage rate A
Certifications CE-Marking, TA Luft, FDA approval, food certification 1935/2004, ATEX
