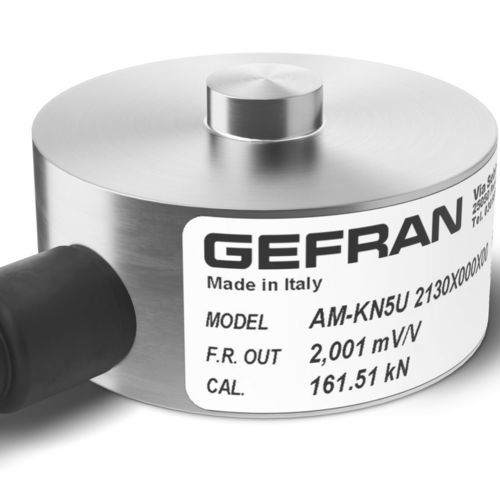

Compression load cell AM button typestrain gaugesmall
Add to favorites
Compare this product
Characteristics
- Type
- compression
- Form
- button type
- Technology
- strain gauge
- Other characteristics
- stainless steel, small, torque, IP65, rugged, corrosion-resistant
- Rated force
Min.: 5 kN
Max.: 20 kN
- Height
17 mm
(0.67 in)
Description
The AM force transducers series have been designed to measure static and dynamic compression forces.
They are particularly suitable for monitoring pounding operations in compression which require a rugged transducer, insensitive to high resonance frequencies caused by non-homogeneous leads in dynamic sequences.
The accuracy and the stability are not affected by continuous cycling under harsh conditions even with dynamic loads.
The small size of the AM force transducers makes them ideal for retrofitting in existing equipment.
-Accuracy class: 1%
