Crankcase honing tool PT

modular

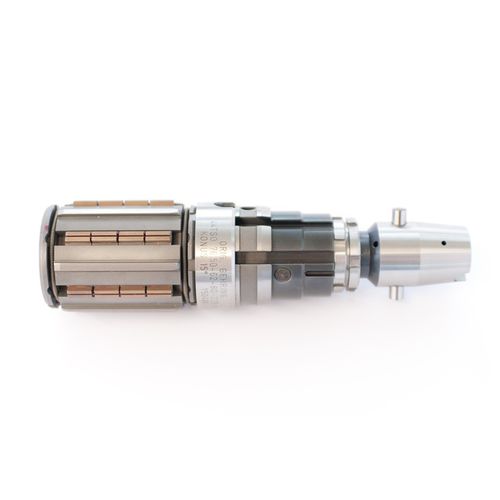

The newly developed multiple-stone PT tooling system is designed for honing bores with a diameter range of 68–110 mm. A special feature is the re-structured modular system, which is characterized by the utilization of standardized components. YOUR BENEFITS In addition to the technical and application-related advantages, the modular structure of the tooling system enables the best delivery times both for new tools and tooling rework. A high degree of standardization results in reduced production costs and an easy tool management - an additional customer benefit with respect to economy in the application. TECHNICAL HIGHLIGHTS The so-called tool string consists of the honing tool and the connecting piece for the spindle. The revision of the joint kinematics in the tool string as a whole – in particular the integration of the lower joint into the honing tool – leads to an ideal compensation of the angular deviation and offset of the workpiece bore to the machine spindle. The adjustability of the joints ensures an extremely long life. The newly designed air and coolant supply of the tool string enables optimal cooling on the area being worked on as well as an in-process gauging in two levels. These technical feature ensure that machining tasks meet the quality requirements for shape and dimensional tolerances of 5–10 μm. This applies to all industry-standard surface requirements of our customers. TYPICAL AREAS OF APPLICATION Applications for the PT Series are cylinder crank cases in diverse models.
