temperature data-logger / USB / without display / high-temperature
-270 ... +1370 °C | TGU-4550 Gemini Data Loggers (UK)

{{requestButtons}}

Characteristics

  • Measured quantity:

    temperature

  • Connector type:

    USB

  • Display:

    without display

  • Applications:

    high-temperature

  • Other characteristics:

    single use

Description

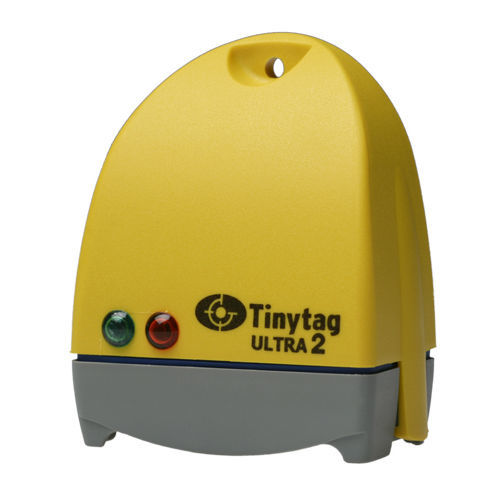

The Tinytag Ultra 2 Thermocouple data logger uses a thermocouple sensor for the cost-effective monitoring of temperature in a wide variety of applications.
Thermocouples are temperature sensors that are popular because of their versatility and low cost.
They typically have a fast response time, can be very small in size and are often cheap enough to be treated as disposable.
Thermocouples are available for specific applications, as diverse as aluminium smelting, air temperature monitoring and food preparation.
The Tinytag Ultra 2 Thermocouple logger supports four different types of thermocouple sensor and is compatible with both standard and miniature thermocouple plugs.
The Tinytag Ultra 2 Thermocouple data logger is priced at £99 + VAT. A starter pack including the logger, USB connection and the Tinytag Explorer software is available for £130 +VAT.
Clik here for Application Notes for the Thermocouple Logger.
Clik here for a Case Study of the Thermocouple Logger being used in lime production research.

FEATURES
Supports type K, J, T & N thermocouples
Connects to standard and minature thermocouple plugs
Burn out repsonse
Automatic cold-junction compensation
Supplied with a type K thermocouple
28,000 reading capacity
High accuracy and reading resolution
Fast data offload
Splashproof case
Low battery monitor
User-replaceable battery
USB or serial download cables
User-programmable alarms
