Ball valve 717handcontrolshut-off
Add to favorites
Compare this product
Characteristics
- Type
- ball
- Operation
- hand
- Function
- control, shut-off
- Media
- for chemicals, for gas, for steam
- Body
- threaded, PTFE, PVC, EPDM, PP, ABS, PVDF
- Applications
- for liquids
- Number of channels
- 2/2-way, 3/2-way
- Other characteristics
- ISO, ANSI, DIN, high-flow
- DN
Max.: 100 mm
(3.937 in)Min.: 10 mm
(0.394 in)- Pressure
Max.: 16 bar
(232.1 psi)Min.: 0 bar
(0 psi)- Temperature
Max.: 100 °C
(212 °F)Min.: -20 °C
(-4 °F)
Description

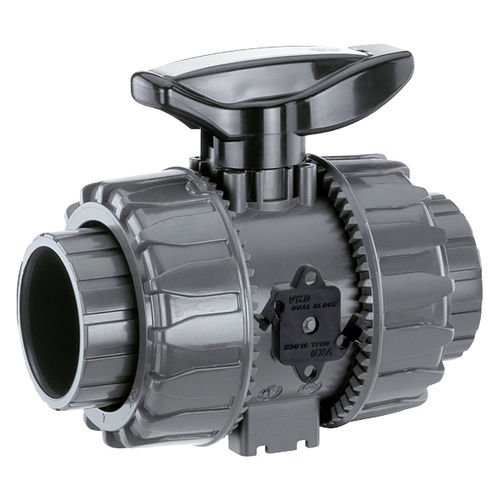

The GEMÜ 717 2/2 or 3/2-way plastic ball valve has an ergonomically designed hand lever and is manually operated. The seat is made of PTFE and the O-ring seals can be made from either EPDM or FKM.
-Depending on version and/or operating parameters
-High flow rates
-Low weight
-Choice of various body materials and connection types
-Union nut with integrated spin-lock
-2/2 and 3/2-way versions available
-Optionally available with control ball
-Connection types:Flange | Solvent cement socket | Spigot | Threaded connection | Union end
-Connection standards:ANSI | BS | DIN | EN | ISO | JIS | NPT
-Body materials:ABS | PP-H, grey | PVC-C, chlorinated | PVC-U, grey | PVDF
-Seal materials:EPDM | FKM
-Conformities:EAC
