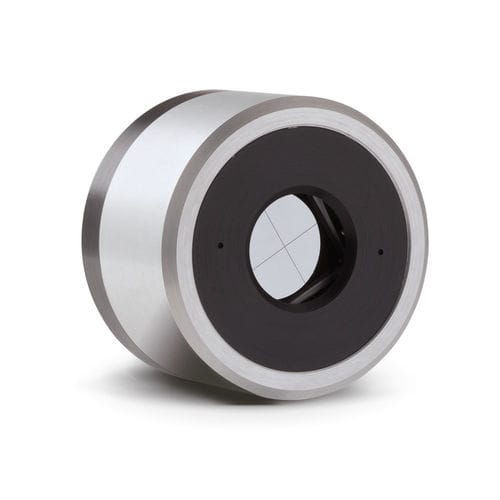

Linear position sensor QUAD-20-MT-P
non-contactquadrantanalog output

linear position sensor
linear position sensor
linear position sensor
linear position sensor
linear position sensor
linear position sensor
linear position sensor
Add to favorites
Compare this product


Characteristics

Type
linear
Contact / non-contact
non-contact
Technology
quadrant
Output signal
analog output
Applications
laser beam
Other characteristics
USB
Measuring range

9 mm, 20 mm
(0.35 in, 0.79 in)

Description

Follow your laser beam wherever it goes. 4-CHANNEL DETECTORS Unique quadrant detector technology senses laser beam position with high resolution. FOR CW, PULSED AND HIGH REP RATE LASERS • QUAD-E: energy per pulse from μJ to mJ • QUAD-P: powers from μW to mW FROM UV TO FIR AND THZ Absorbers to cover all sources, from UV to millimeter wavelengths FAST USB 2.0 CONNECTION Ensures full speed tracking INCLUDES APPLICATION SOFTWARE Complete LabView application software included, with many features QUAD-4TRACK The QUAD-4TRACK is a laser position sensing system designed to support our unique pyroelectric quadrant detectors, QUAD-P and QUAD-E. It is a 4-channel microprocessor-based system that measures the voltage output of each QUAD element and does the math necessary to provide a measurement of the X and Y displacement of a laser beam or image. It is fast and can be used to track, align and/or measure movement in real time, with a resolution of just a few microns! QUAD DETECTORS Our large area pyroelectric quadrant detectors provide unique advantages over other position sensing detectors like silicon quads or lateral effect photodiodes. They are fast, handle high peak power of pulsed lasers without saturation and respond to lasers across the spectrum, from UV to Far IR and even THz. The QUAD-E is intended for use with pulsed sources at up to 1000 Hz, while the QUAD-P is designed for CW and high repetition rate (quasi CW) sources. Both types of detectors can also be used as standalone units, in an analog mode, for incorporation into your own system application. We can provide a lemo pigtail cable for this purpose.
