motion detector / ultrasonic / ceiling-mounted

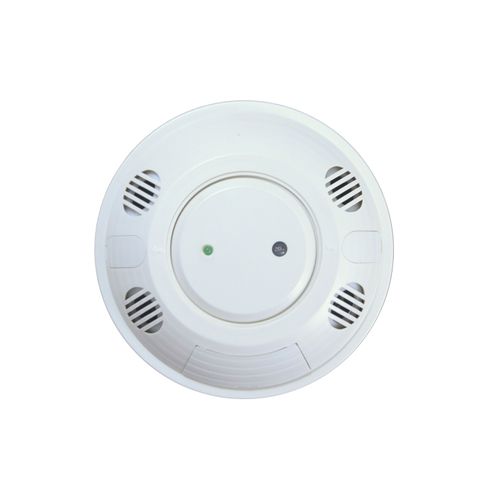

GENCUS2000 Gentec

{{requestButtons}}

Characteristics

  • Detected entity:

    motion

  • Technology:

    ultrasonic

  • Other characteristics:

    ceiling-mounted

Description

The GENCUS2000 ceiling-mounted Ultrasonic low voltage Occupancy Sensor employs ultrasonic technology to accurately detect occupancy and automatically turn ON lighting. This low profile sensor is ideal for motion detection over partitions and other common obstructions. Once lighting has been turned ON, it employs ultrasonic technology to keep lighting ON while areas remain occupied. When the room or area is no longer occupied, the sensor turns OFF lighting after a preset time delay.
The low profile sensor is ceiling-mounted for greatest sensitivity to motion in large areas with obstructions. With a 360-degree field of view and up to 2000 square feet of coverage area, the ceiling-mounted Ultrasonic Occupancy Sensor is ideal for conference rooms, classrooms, bathrooms, and large office areas.


These ceiling-mounted sensors also incorporate an integral light level sensor to prevent lighting from switching ON when sufficient ambient light is present, such as is commonly found in windowed areas.

Installation and configuration is simple. The sensor readily mounts to drop ceilings and features front located adjustments for setting sensitivity and time delay. The sensor also features an isolated relay for use with building automation and HVAC systems.
