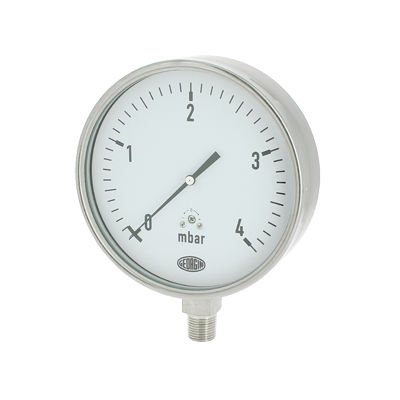

Relative pressure gauge M5100

dialthreadedstainless steel

Suitable for low pressure, gaseous media which will not obstruct the pressure entry and severe environments. Version: relative pressure Technology: 316L stainless steel capsule Safety glass Options: » Case filled with glycerine or silicon oil » Oxygen cleaning » Bottom or lower back connection with or without flange Uses Suitable for low pressure, gaseous media which will not obstruct the pressure entry and severe environments. Working pressure Steady 100% FS Fluctuating 90% FS Case 304 stainless steel, bezel ring no filling Protection class IP 55 (according to EN60529) Window Plain glass 4mm Dial White aluminium Black letters and graduations Pointer Black aluminium Zero setting By screw on dial Window gasket Neoprene rubber Movement 304 stainless steel Pressure element Capsule Material 316L stainless steel Process connection 316L stainless steel ½’’ BSPM or ½’’ NPTM Location of connection Bottom or back Mounting Direct Panel (front flange) Wall mounting (back flange)
