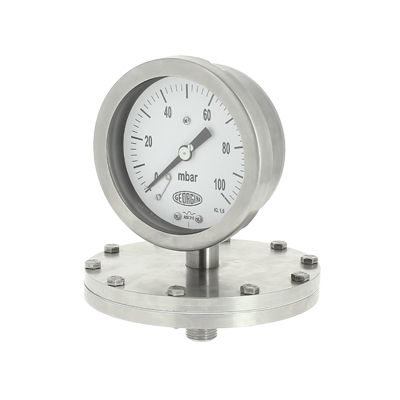

Relative pressure gauge M5200
analogthreadedstainless steel

relative pressure gauge
relative pressure gauge
Add to favorites
Compare this product


Characteristics

Pressure type
relative
Display
analog
Mounting
threaded
Material
stainless steel
Technology
diaphragm
Protection level
ATEX, IP65
Applications
process, for gas, for liquids
Other characteristics
glycerin-filled, adjustable, dial
Pressure

Min.: -600 mbar
(-8.7 psi)

Max.: 25,000 mbar
(362.59 psi)

Dial diameter

63 mm, 100 mm, 150 mm
(2.5 in, 3.9 in, 5.9 in)

Process temperature

Min.: -25 °C
(-13 °F)

Max.: 100 °C
(212 °F)

Description

Suitable for severe environments and corrosive, gaseous or liquid media which will not obstruct the pressure entry. Version: relative pressure Technology: 316L stainless steel diaphragm Safety glass Options: » 1 or 2 electrical switches » ATEX Version » Case filled with glycerine or silicon oil » 316 stainless steel case » Oxygen cleaning » Bottom or lower back connection with or without flange » Normalized flange according to ISO or ANSI Uses Suitable for severe environments and corrosive gaseous or liquid media which will not obstruct the pressure entry Working pressure 100% FS Fluctuating pressure: 90% FS Temporary: 130% FS Case 304 stainless steel, bezel ring oil filling (on request) Protection class IP 65 (according to EN60529) Window Safety glass Dial White aluminium Black letters and graduations Pointer Adjustable Black aluminium Window gasket Neoprene rubber Movement 304 stainless steel Pressure element Diaphragm Material 316L stainless steel ) Process connection 316L stainless steel ½’’ BSPM or ½’’ NPTM Location of connection Bottom Marking II 2GD c T(1) IP65 T(2) (1): T6 ...T4 (2): T85°C ...T135°C
