current indicator / digital / panel-mount / 4-20 mA
GeXi07, GeXi27 series GEORGIN S.A.

{{requestButtons}}

Characteristics

  • Measured value:

    current

  • Display:

    digital

  • Type:

    panel-mount

  • Other characteristics:

    4-20 mA, loop-powered, intrinsically safe

  • Applications:

    for hazardous environments

Description

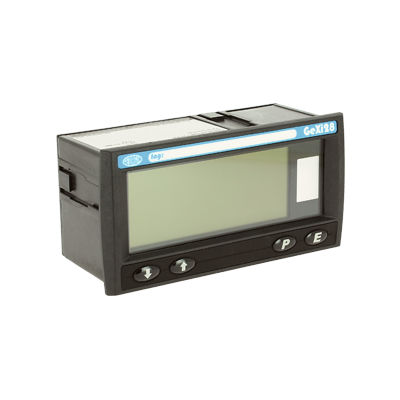

4/20 mA loop powered intrinsically safe field mounted indicator. Located in hazardous area, this indicator displays the current flowing in a 4/20 mA loop in engineering units.

Input: 4/20mA
Supply: Loop powered (2 wires)
Setting: Front panel push buttons
Installation : Zone 0, 1 or 2 ; 20, 21 or 22
Models:
» GeXi07 (4 digits 20 000 points high 15mm – size 96 x 48mm)
» GeXi27 (5 digits 200 000 points high 11mm – size 96 x 48mm)
» GeXi08 (4 digits 20 000 points high 34mm – size 144 x 72mm)
» GeXi28 (5 digits 200 000 points high 29mm – size 144 x 72mm)

Options:
» 2 alarms
» Backlight

EC Type examination certificate number :
ITS11ATEX27254X

ATEX classification :
II (1) G Ex ia IIC T5 Ga
II (1) D Ex ia IIIC T80°C Da IP20
