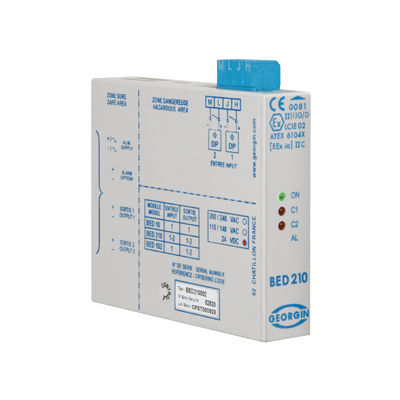

24VDC solid state relay / 48VDC / 110VAC / DIN rail
BED series GEORGIN S.A.

{{requestButtons}}

Characteristics

  • Control voltage:

    24VDC, 48VDC, 110VAC

  • Other characteristics:

    DIN rail

  • Switching current:

    Max.: 20 mA

    Min.: 4 mA

Description

This device is designed to relay digital signals coming from a switch or a proximity sensor installed in hazardous area to the safe area.

Input: Switch or proximity sensor
Output: Switch (5A – 250V) or transistor (5kHz)
Supply: 24-48 VDC, 110 VAC or 230 VAC
Model: 1 or 2 channels and signal duplicator (1 input – 2 outputs)
Red LED for relay state, and green LED for presence of voltage
Installation : Safe area

Options:
» Alarm (loop integrity with proximity sensor)
» Screw terminals
» Icc current limited to 20mA or 5mA according to codification

EC Type examination certificate number :
LCIE 02 ATEX 6104X

IECEx conformity certificate :
LCI 09.0013X

ATEX/IECEx classification :
II (1) GD [Ex ia] IIC or [Ex ia] IIB or [Ex iaD]
