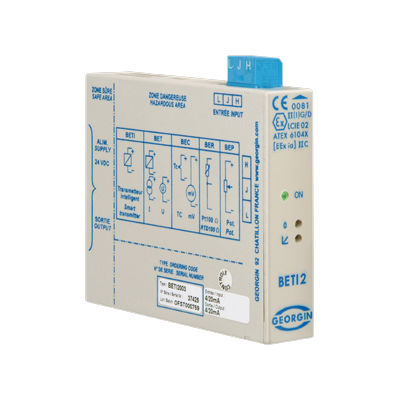

galvanically-isolated signal converter
BET(I) series GEORGIN S.A.

{{requestButtons}}

Characteristics

  • Other characteristics:

    galvanically-isolated

Description

This device is designed to interface and convert signals coming from the hazardous to the safe area.

Input: Current (4/20mA - 0/20mA…), Voltage (0/5V - 0/10V…) or other on request
Output: Current (4/20mA - 0/20mA…), Voltage (0/5V - 0/10V…) or other on request
Supply: 24 VDC
Model: 1 channel
Setting: Adjustment potentiometer for the source and the curve on the front
green LED for presence of voltage
Installation : Safe area

Options:
» Hart signal transparency with the barrier (BETI)
» Screw terminals

EC Type examination certificate number :
LCIE 02 ATEX 6104X

IECEx conformity certificate :
LCI 09.0013X

ATEX/IECEx classification :
II (1) GD [Ex ia] IIC or [Ex ia] IIB or [Ex iaD]
