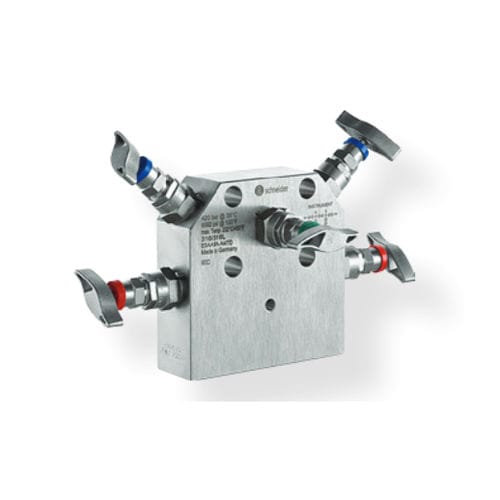

3-way manifold A33 series

stainless steelflangeisolation

Function: isolation, equalisation, calibration and venting Material: 316L st. st. + PTFE packing Process connection:1/2'' NTPF, flange connection, other on request In partnership with the German family-based company AS-Schneider, Georgin markets a broad range of manifolds.You should choose your 2, 3 or 5 valve manifold according to two essential criteria :• The design of the valve body that makes installation easier and optimises ease of use by offering ready access to the process in the maintenance phases.• Consideration of the nature of the fluid, both in the selection of the material of the body (carbon steel, rust-proof or duplex materials, alloys, titanium, etc.) and of the material of the tap seals (PFTE as standard).As shown below, the coloured rings identify the insulation, drain and balancing. Optional markings can be added to identify the graphite seal, a PCTFE endpiece, reinforced sealing solutions or equipment that can be used with oxygen.The modularity of the range also allows for a broad choice of taps that meet normative requirements (emissions of volatiles), process safety requirements (OS&Y valve) or site security (anti-vandalism systems).Every assembly is tested at 1.5 times the maximum service pressure, as per EN 12266-1
