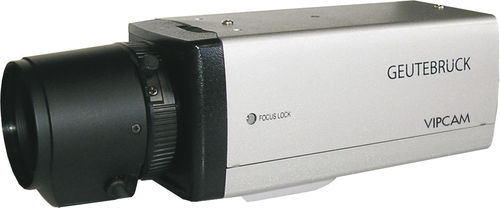

CCTV camera / for night vision / visible / CCD
720 x 540 px | VIPCAM-DN101/PX GEUTEBRÜCK



  • Function:

    CCTV, for night vision

  • Spectrum:


  • Sensor:


  • Other characteristics:

    networked, day/night


Extremely high resolution hyper wide dynamic net- work day/night camera with PIXIM technology and automatic mechanical IR-cut filter. Can be integrated directly and without license into the video system architecture from GEUTEBRÜCK. Signal
processor for online picture analysis and compres- sion is already integrated into the camera. Activity Detection (AD) or Video Motion Detection (VMD) may run directly on the camera and can be activated via license. Pictures are transmitted in
accordance with the GEUTEBRÜCK format at 25 pictures/s. Different function packages for picture analysis and compression can be loaded case specific into the inbuild digital video signal processor (DVSP). The compression standard MPEG4CCTV with up to 4CIF @ 5MBit/s allows an optimized adaptation of the picture data to project specific
requirements. It comes with the following feature list: OSD, electronic picture multiplication, automatic white balancing, adjustable wide dynamic range, digital noise reduction and camera text insertion. Video signal and DC controlled lenses are supported.
